Sennheiser XSW 1-835 DUAL-A
Regular price $899.00/
1 in stock
The Sennheiser XSW 1-835 Dual is a solid, reliable wireless transmission with up to 10 compatible channels in a stable UHF band
This vocal set is an easy-to-use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser's renowned evolution microphone capsule, the e835 (superior dynamic, cardioid). The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as vocal microphones and microphone clamps.Features
Specifications
Dimensions: approx. 200 x 42 x 127 mm
THD, total harmonic distortion: 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: A: 548-572 MHz
Sensitivity: < 3 V at 52 dB(A)rms S/N
Squelch: djustable from 3 dBV to 28 dBV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: -20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

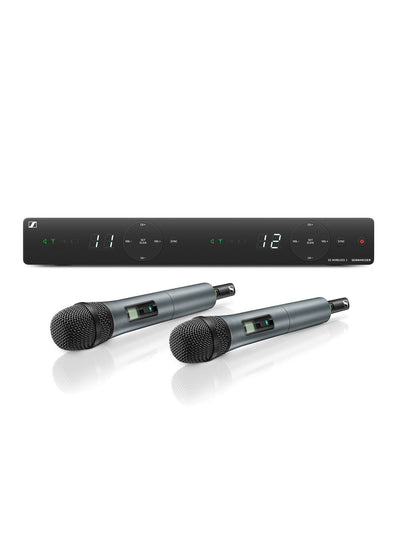

What's in the Box
1 stationary receiver EM-XSW 1 Dual
2 handheld transmitter SKM 835-XSW
2 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
