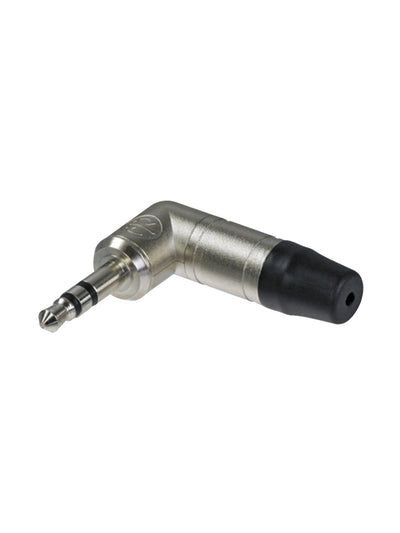

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Features & Benefits
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent cable protection
- Slim design - space saving
Technical Information
Title |
NTP3RC |
Connection Type |
Plug |
Gender |
male |
Contact resistance |
depends on mating connector mΩ |
Dielectric strength |
1 kVdc |
Insulation resistance |
> 2 GΩ (initial) |
Rated voltage |
<50 V |
Cable O.D. |
2 - 4.5 mm |
Wiresize |
0,22 mm² |
Wiresize |
24 AWG |
Wiring |
Solder contacts |
Bushing |
Brass (CuZn39Pb3) + PU, Ni |
Contact plating |
2 µm Ni (Su) |
Contacts |
Brass (CuZn39Pb3) |
Insert |
Polyamide (PA 6.6 15 % GR) |
Shell |
Zinc diecast (ZnAl4Cu1) |
Shell plating |
Nickel |
Strain relief |
Polyacetal (POM) |
Solderability |
Complies with IEC 68-2-20 |
Temperature range |
-20 °C to +65 °C |
