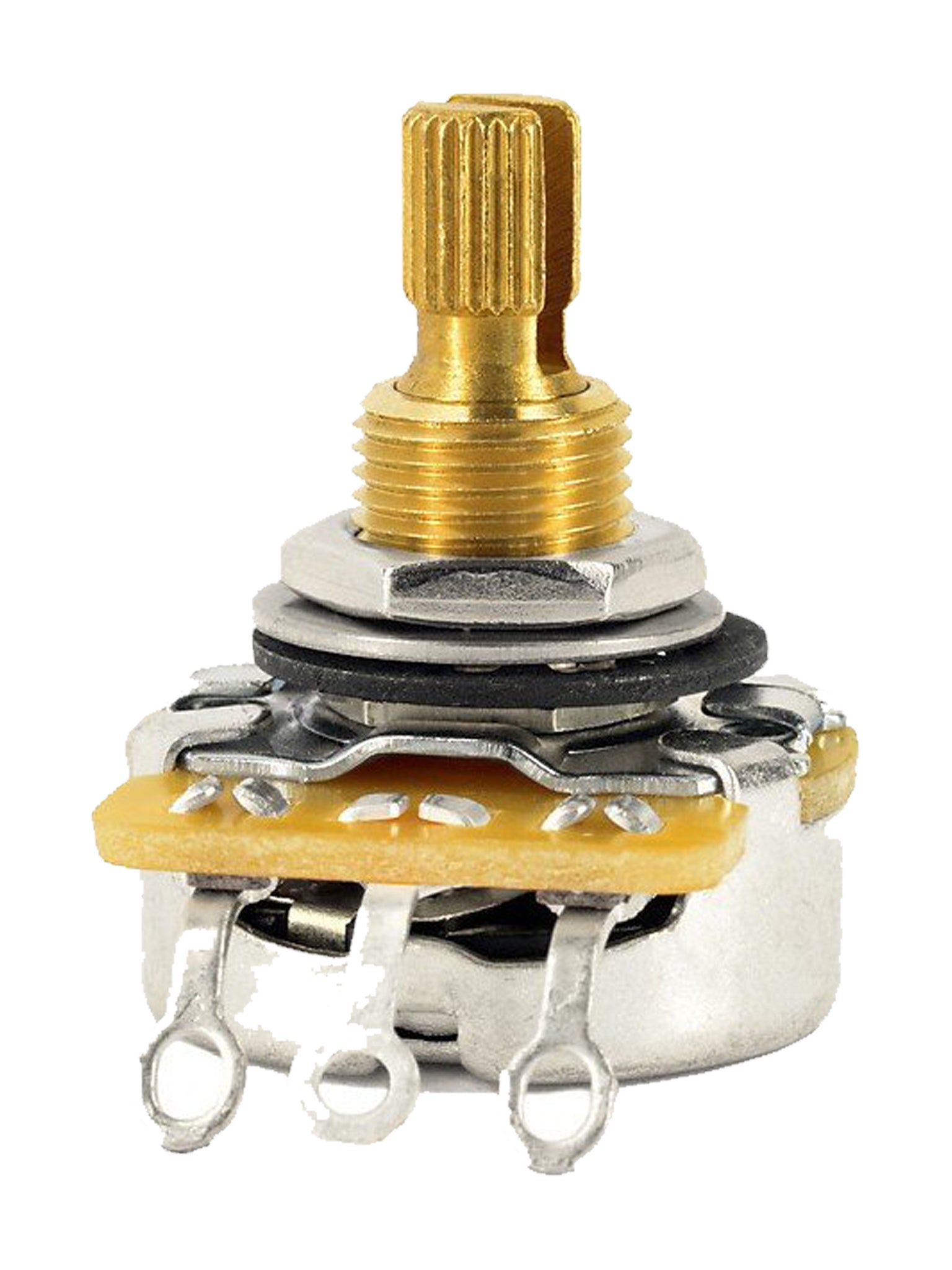

CTS WD-450-500-1, Audio Taper Pot, Split Shaft, 500KRegular price $11.00
WD Music Products developed this high-quality potentiometer with CTS to offer you exceptional performance in electronics for your instrument. These are NOT the same CTS pots that other companies stock and sell. These are developed using 9% +/- tolerances and a value at 10% over the standard 500K rating (550K). This ensures you not only optimum performance but guarantees your potentiometers will always be at least the value stated unlike many others using 20% tolerances where you can be over spec but in most cases way under the specifications you need to ensure good tone from your pickups. We added brass components and a high quality wiper versus what comes standard on most run of the mill pots to ensure long life, quality and consistent performance.
Important Specs and Dimensions:
Tolerance = +/- 9%
Can Size = 15/16 in. radius X 3/8 in. height
Bushing Threads = 3/8-32
Bushing Height = 3/8 in.
Shaft Type - split
Shaft Diameter = .238 in (6.3mm)
Spline Count = 24 (NOT metric)
Shaft Length - 3/8 in.
Hole size requirement = 3/8 in.
Value = 550K Ohms
