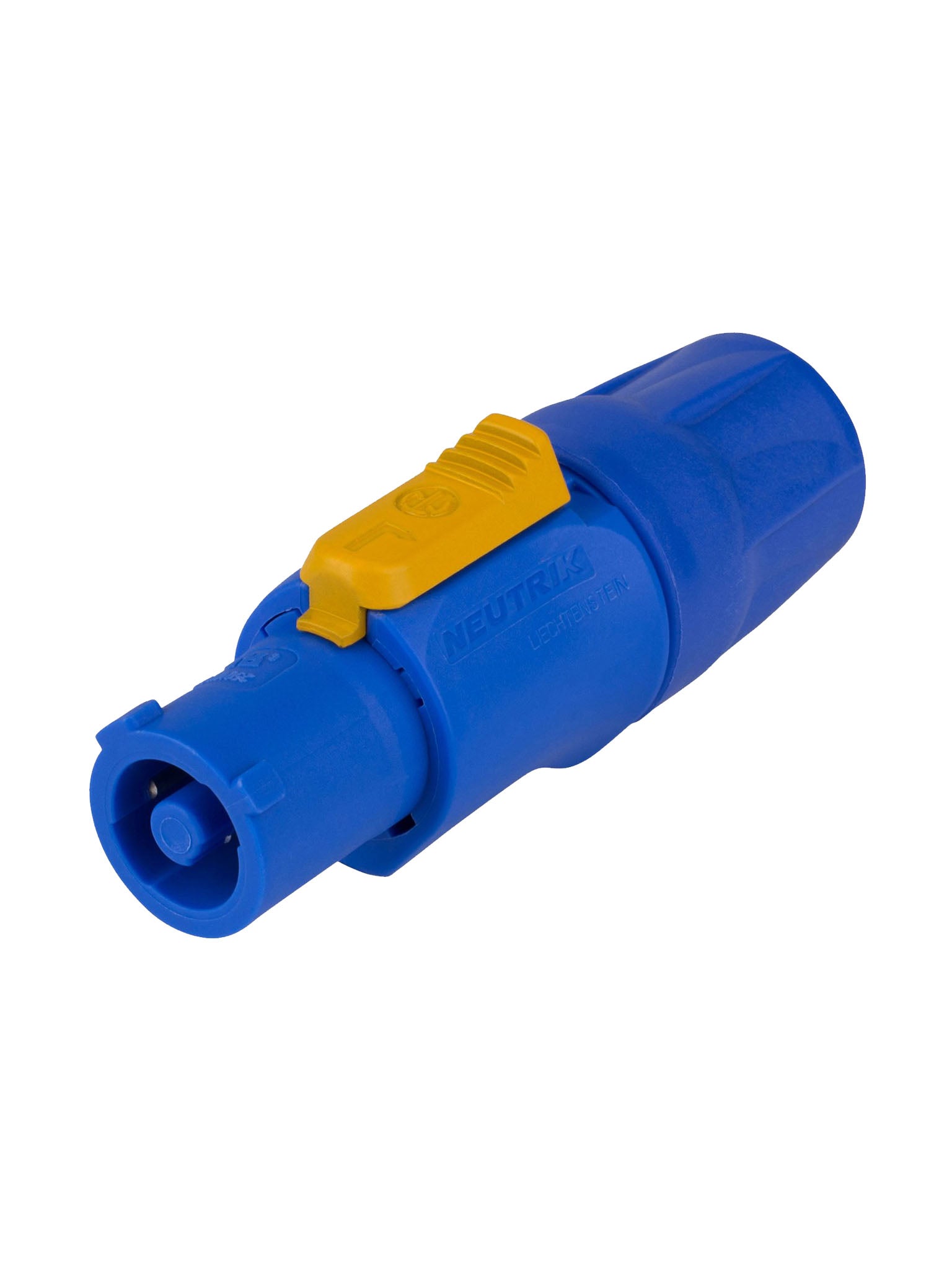

Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features & Benefits
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique Neutrik chuck type strain relief
- Improved kink protection by two-component bushing
- UL, cUL recognized components
VDE certified
SEV approved
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information
| Title |
NAC3FCA |
| Gender |
female |
| Contact resistance |
≤ 3 mΩ |
| Dielectric strength |
4 kVdc / 2.8 kVac |
| Insulation resistance |
> 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts |
2 + PE |
| Rating Europe |
EN 61984:20 A 250 V AC |
| Rating USA |
UL 1977:20 A 250 V AC |
| Cable O.D. |
6 - 15 mm (1) |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
2,5 mm² |
| Wiresize |
12 AWG |
| Locking device |
Quick Lock |
| (1) |
Cable O.D. range limited to 6 mm - 14 mm acc. VDE |
| Contact plating |
4 µm Ag |
| Contacts |
Bronze (CuSn6) |
| Insert |
Polyamide (PA 6 30 % GR) |
| Locking element |
Zinc diecast (ZnAl4Cu1) |
| Shell |
Polyamide (PA 6 30 % GR) |
| Strain relief |
Polyacetal (POM) |
| Temperature range |
-30 °C to +80 °C |
