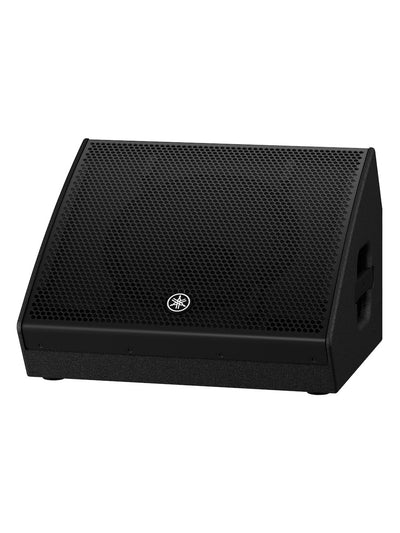

Yamaha DHR12M Powered Speaker

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

Product Specifications

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range: 55 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL
• Components
  • LF: Diameter: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
  • HF: Diaphragm: 1.75", Type: 1" throat compression driver, Magnet: Ferrite
• Amplifier class: Class-D
• Power rating
  • Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
  • Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x1
• Pole socket: Φ35 mm x1 (Bottom)
• Dimensions (W x H x D): 19.7 x 13.5 (with rubber feet) x 17.9 inches (432 x 692 x 405mm)
• Net weight: 36.4 lbs (16.5 kg)
