Description:

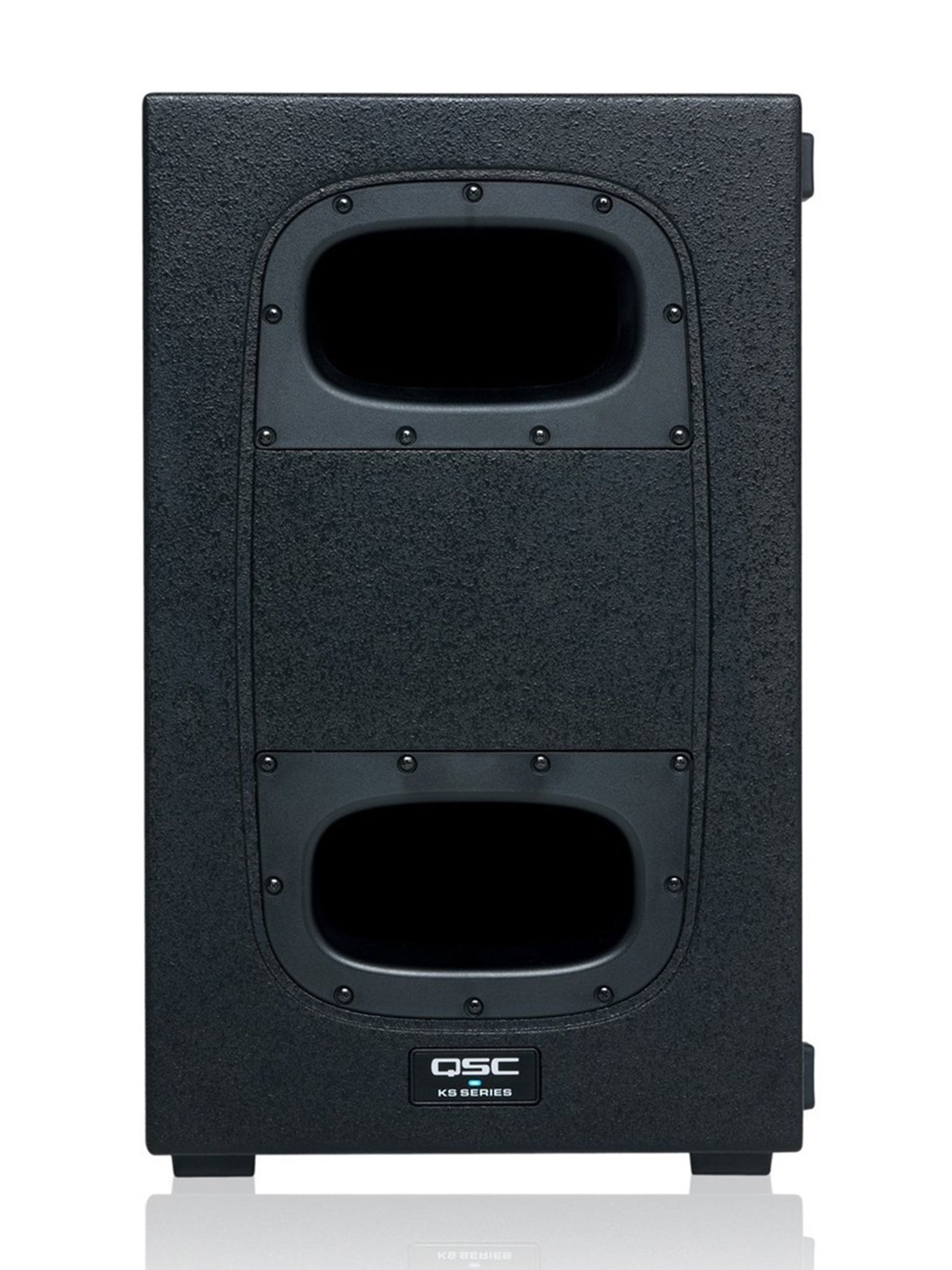

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
Features
• High Output in an ultra-compact form factor
• 2000 Watt Class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Intrinsic Correction tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged, painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
Specifications
| Model | KS112 |
|---|---|
| Configuration | 6th-Order Bandpass Subwoofer |
| LF Transducer | 305 mm (12 in), Cone |
| Frequency Response (-6 dB) | 41 Hz - 108 Hz |
| Frequency Range (-10 dB) | 38 Hz - 121 Hz |
| Maximum Rated SPL1 | 128 dB @ 1 m (peak) |
| Amplifier | Class D 2000W (peak) |
| Cooling | Low-noise, variable speed fan |
| Controls | Power On/Off Gain Control Rotary encoder 2 × selection buttons |
| Indicators | 2 × Power LED (front and rear) Input Signal LED Limiter Active LED |

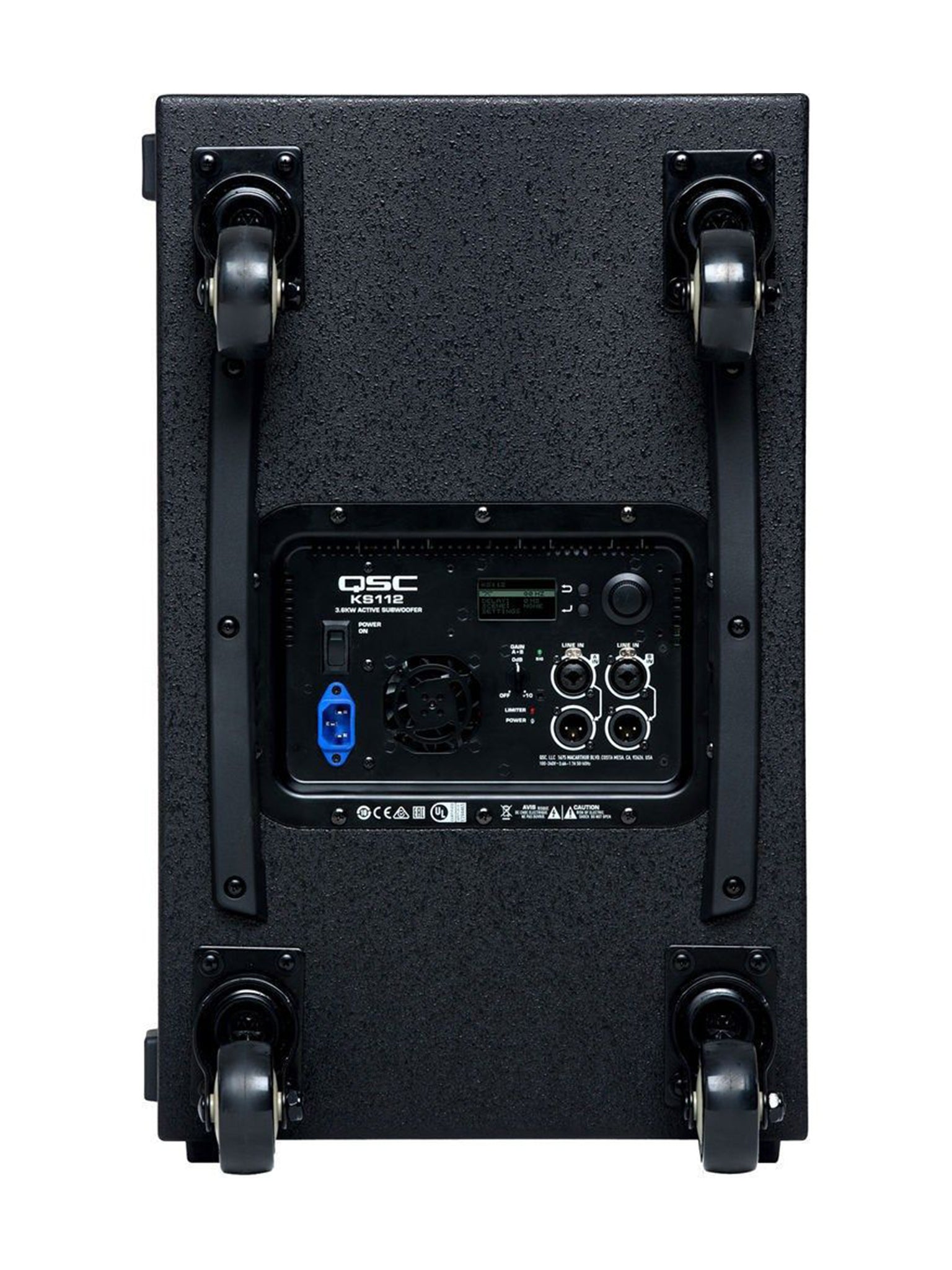

| Connectors | 2 × locking XLR/F 1/4-inch combo 2 × XLR/M (Loop-thru Output) 1 × locking IEC power connector |
| AC Power Input | Universal power supply 100 - 240 VAC, 50 - 60 Hz |
| AC Power Consumption | 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A |
| Enclosure Details | |
| Enclosure | 15 mm Birch Plywood |
| Color | Black (RAL 9011) |
| Grille | Internal woofer cover |
| Speaker Dimensions (H×W×D) | 622 × 394 × 616 mm 24.5 × 15.5 × 24.25 in |
| Carton Dimensions (H×W×D) | 740 × 500 × 673 mm 29 × 19.7 × 26.5 in |
| Net Weight | 28.4 kg / 62.6 lb |
| Shipping Weight | 35 kg / 77.2 lb |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Included Accessories | 4 × Low-Noise, Heavy Duty Casters |
| Optional Accessories |
KS112 CVR Transport Cover, KS-LOC Lock-Out Cover |
