Description:
High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over (including Sherwood!) have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6 Year Warranty when registered within 30 days of purchase
Specifications
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 305 mm (12 in), cone |
| HF Transducer: | 35.6 mm (1.4 in) compression driver |
| Frequency Response (-6 dB) | 49 - 20 kHz |
| Frequency Range (-10 dB) | 47 - 20 kHz |
| Nominal Coverage Angle: | 75° Axisymetric |
| Maximum Rated SPL1: | 126 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |

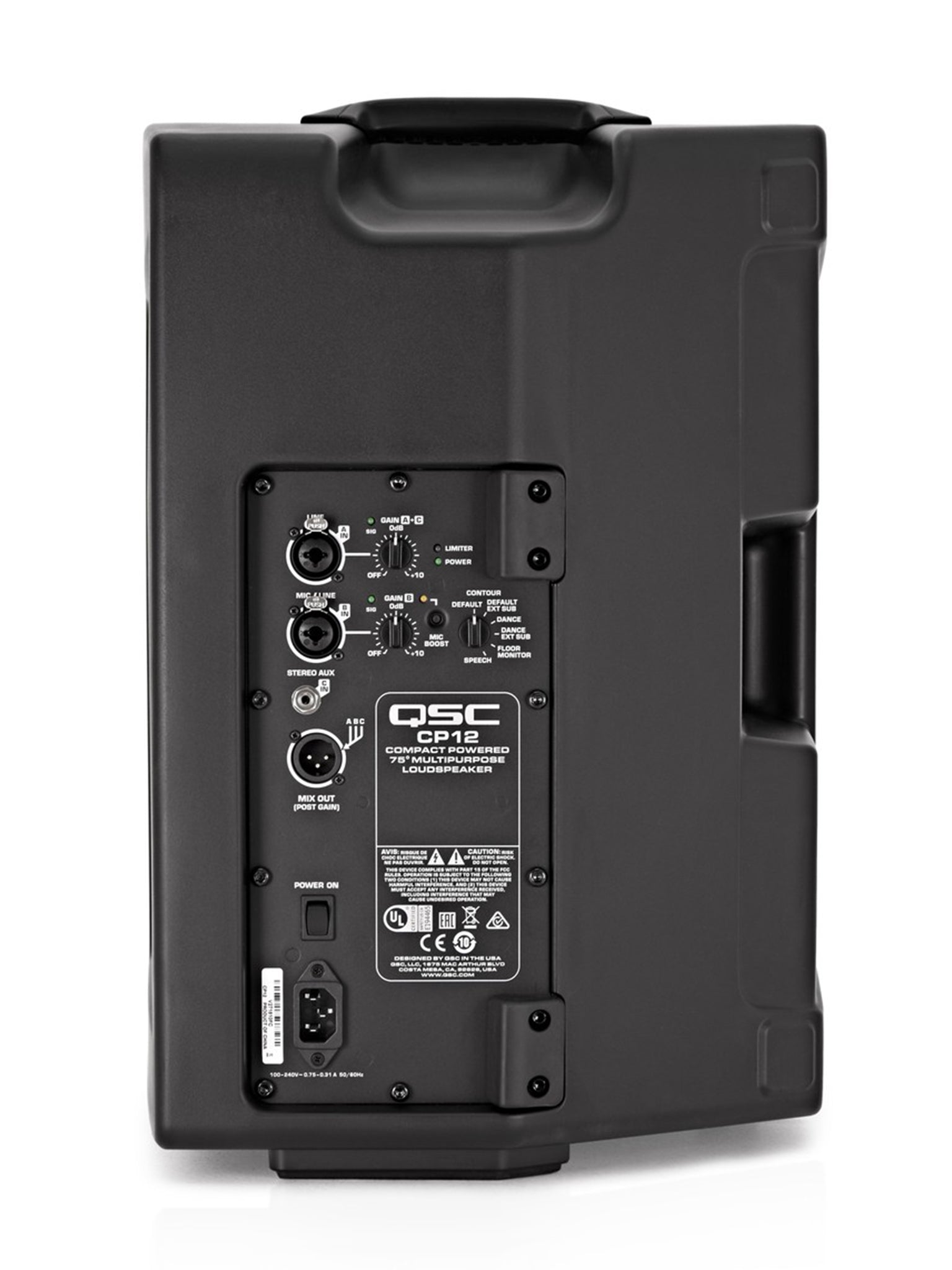

| Controls: | Power 2 × Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors: | 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption (1/8th Power): | 100 VAC, 0.75A - 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Speaker Dimensions (H×W×D): | 516 × 350 × 323 mm 20.3 × 13.8 × 12.7 in |
| Carton Dimensions (H×W×D): | 430 × 430 × 604 mm 17 × 17 × 23.8 in |
| Net Weight: | 13.7 kg / 30.3 lb |
| Shipping Weight: | 16.5 kg / 36.4 lb |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP12 Tote, CP12 Outdoor Cover, CP12 Yoke |
