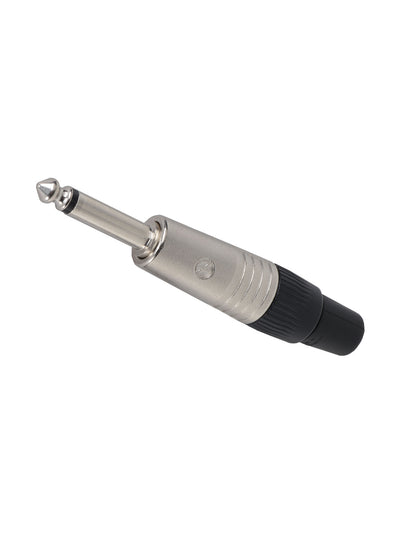

2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Features & Benefits
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
Technical Information
| Title |
NP2C |
| Connection Type |
Plug |
| Gender |
male |
| Contact resistance |
depends on mating connector mΩ |
| Dielectric strength |
1 kVdc |
| Insulation resistance |
> 2 GΩ (initial) |
| Rated current per contact |
depends on mating connector A |
| Rated voltage |
< 50 V |
| Cable O.D. |
4 - 7 mm |
| Lifetime |
> 1000 mating cycles |
| Wiresize |
1 mm² |
| Wiresize |
18 AWG |
| Wiring |
Solder contacts |
| Bushing |
Polyacetal (POM) + PU |
| Contact plating |
2 µm Ni (Su) |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
Polyamide (PA 6.6 30 % GR) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Nickel |
| Strain relief |
Polyacetal (POM) |
| Standard compliance |
IEC 60603-11 / EIA RS-453 |
| Solderability |
Complies with IEC 68-2-20 |
| Temperature range |
-20 °C to +65 °C |
